Irrigation Automatic Solenoid Valve

24 V AC/DC controlloed Solenoid Valves in all sizes 1", 1.25", 1.5", 2", 3", 4" and 6". Yes, I am interested! The solenoid valves for irrigation, are components that allow blocking or diverting the air flow and are electrically controlled by a coil (solenoid) that applies a voltage that varies depending on the type (24V - 110V, etc.).

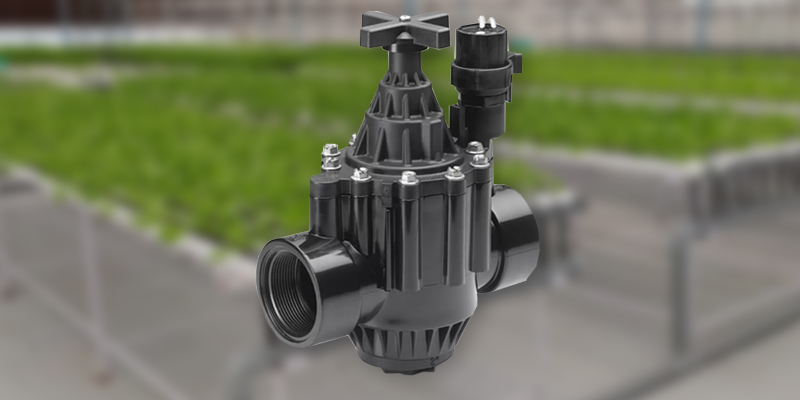

Solenoid valve (Rain Bird) for irrigation with 1 inch (F / F) threads and 24 VAC coil. Alternative for the 100-DV series. Normally closed (opens when energized).

Suitable for clean liquids (max. 43 ° C). Minimum differential pressure 1 bar (indirect operation), maximum pressure 10 bar. Robust glass filled polypropylene housing with NBR seal. Manual operation possible. The flow can be adjusted manually by turning a knob.Solenoid valve or solenoid valve is a device that represents the ideal solution for various applications.

Enquire Now

---

Features:

Rain Bird Irrigation Solenoid Valve with glass-filled polypropylene body, 1-inch pipe threads (BSP F / F), and a 24 VAC (50 Hz / 60 Hz) coil. Rain Bird specializes in irrigation systems and is known for its quality, reliability and smart design.

The valve is normally closed (opens when electrically energized). This valve is particularly suitable for irrigation systems, but can also be used for other applications. Suitable for systems with an operating pressure of 1 to 10 bar with a maximum temperature of 43 ° C.

To function properly, the valve needs a positive differential pressure of at least 1 bar. When the inlet pressure is lower, for example a gravity fed system, this valve cannot be used. In this case, a direct operated (semi) solenoid valve or an electric ball valve is recommended.
